1.8M Dual Bay Outdoor Cabinet Model: GODD18H260HEX

Items	Description
Unit Dimensions (HxWxD)	2000x 1800x800mm
Color	GREY RAL7035
Material	Galvanized steel(Aluminum/stainless steel/Color coated steel optional)
Finish	Powder Coating finishes
IP (Ingress Protection) Rating	IP55,NEMA 4,NEMA 4X
Instalation	Floor mount
Interior Rack	19″ Rack Mount
Integrated Cooling	DC 260W/K Hex (Optional for other)
Locking Mechanism	6 point Locking
Access	Doble Doors (Optional for others)

Notes

Shipping Option: Assembly unit with carton or wood pallet
Waterproof outdoor server cabinet enclosuresIP Rating: IP55 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
Outdoor server rack enclosures Material Options: Cold metal Steel, galvanized steel, stainless steelor aluminum steel
Outdoor electrical cabinet Climate Controloptions: such as cooling fans, air conditioner , heat exchanger and Thermoelectric Cooler (TEC)

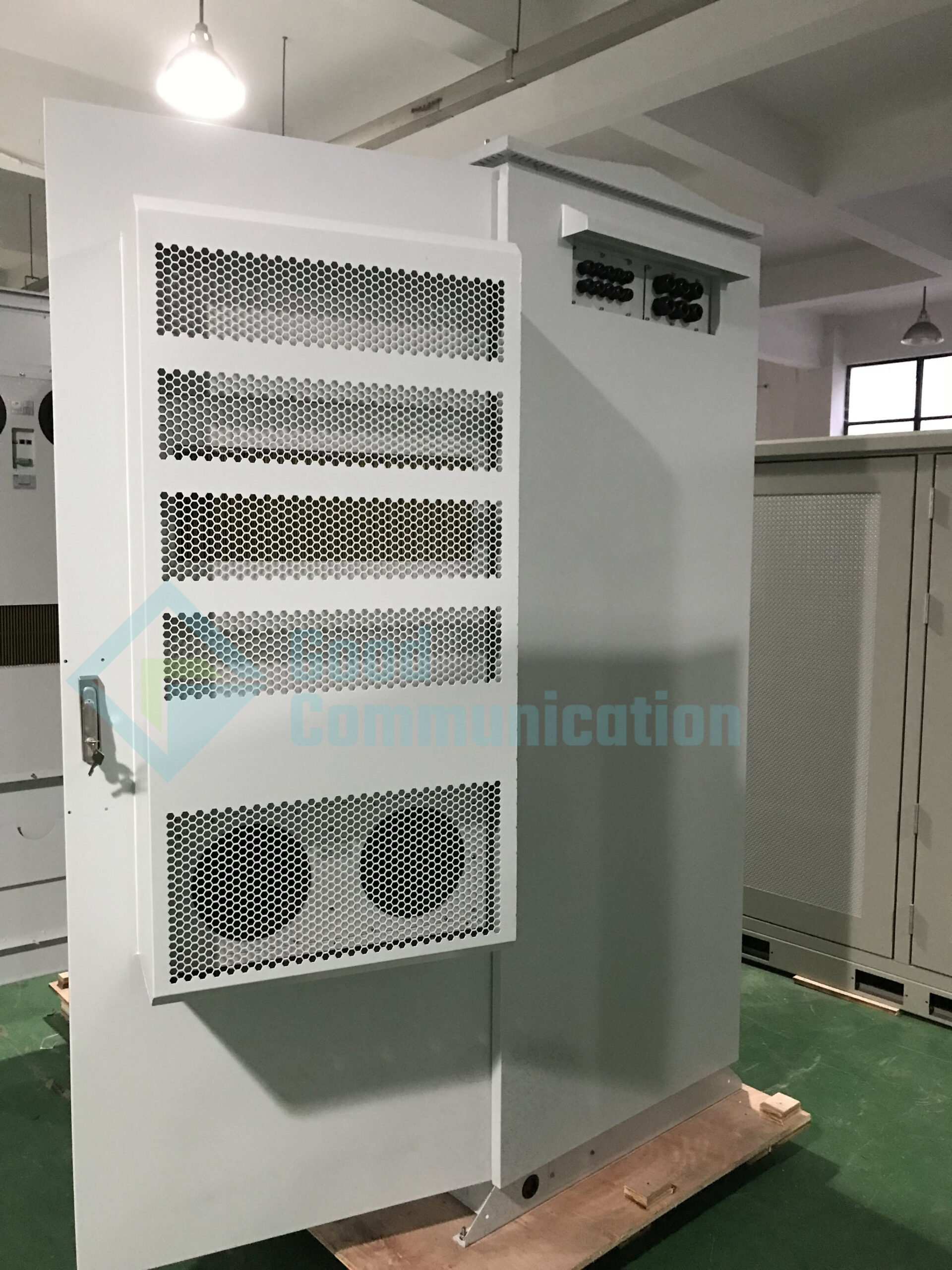

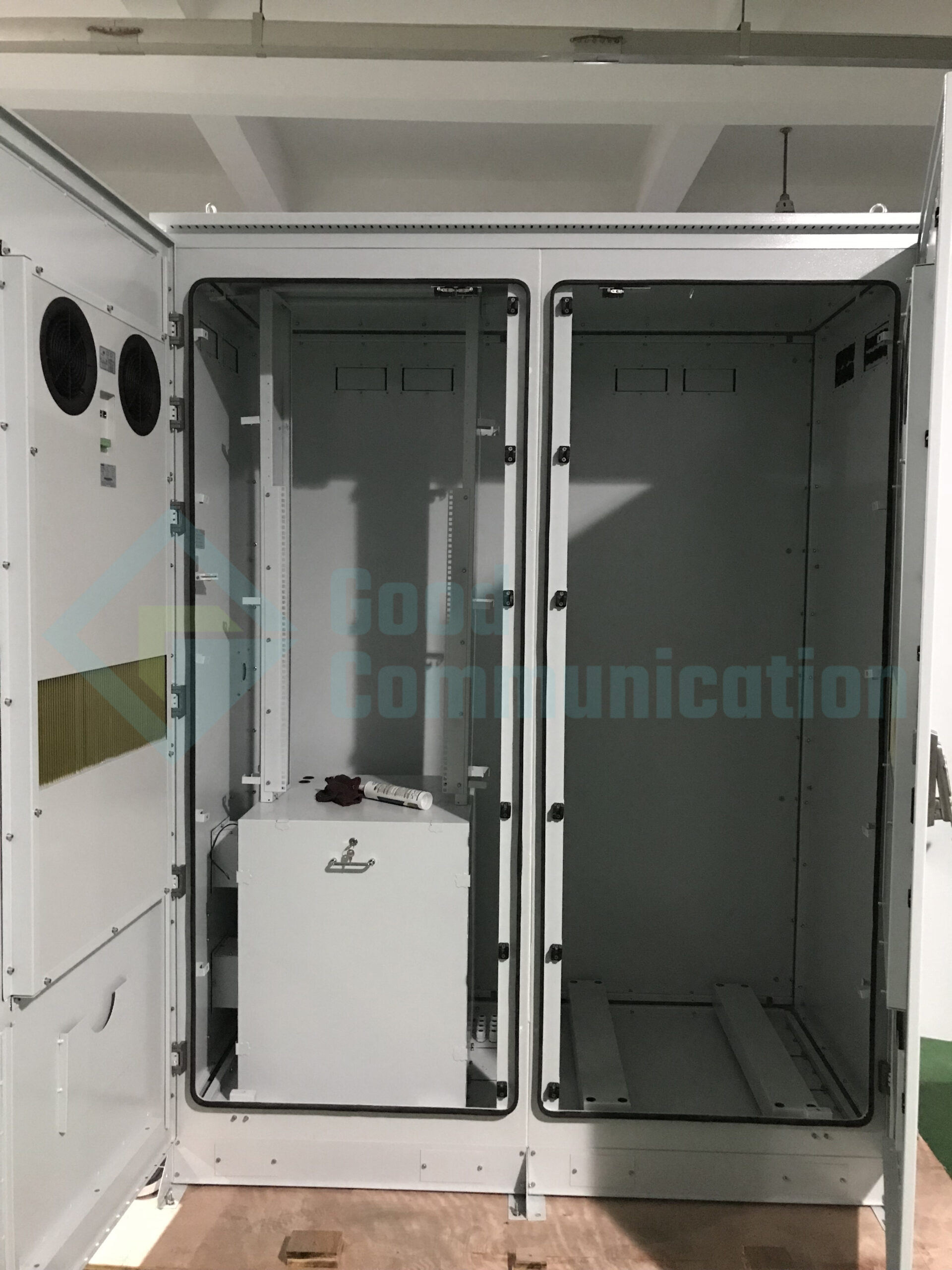

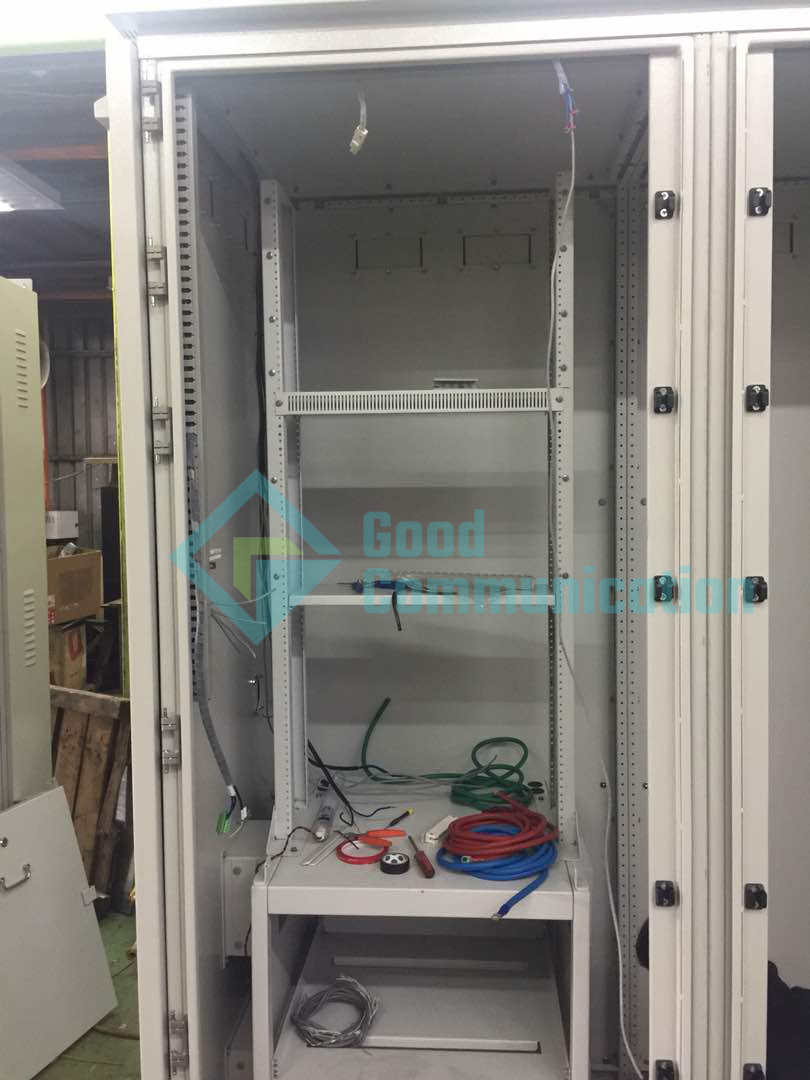

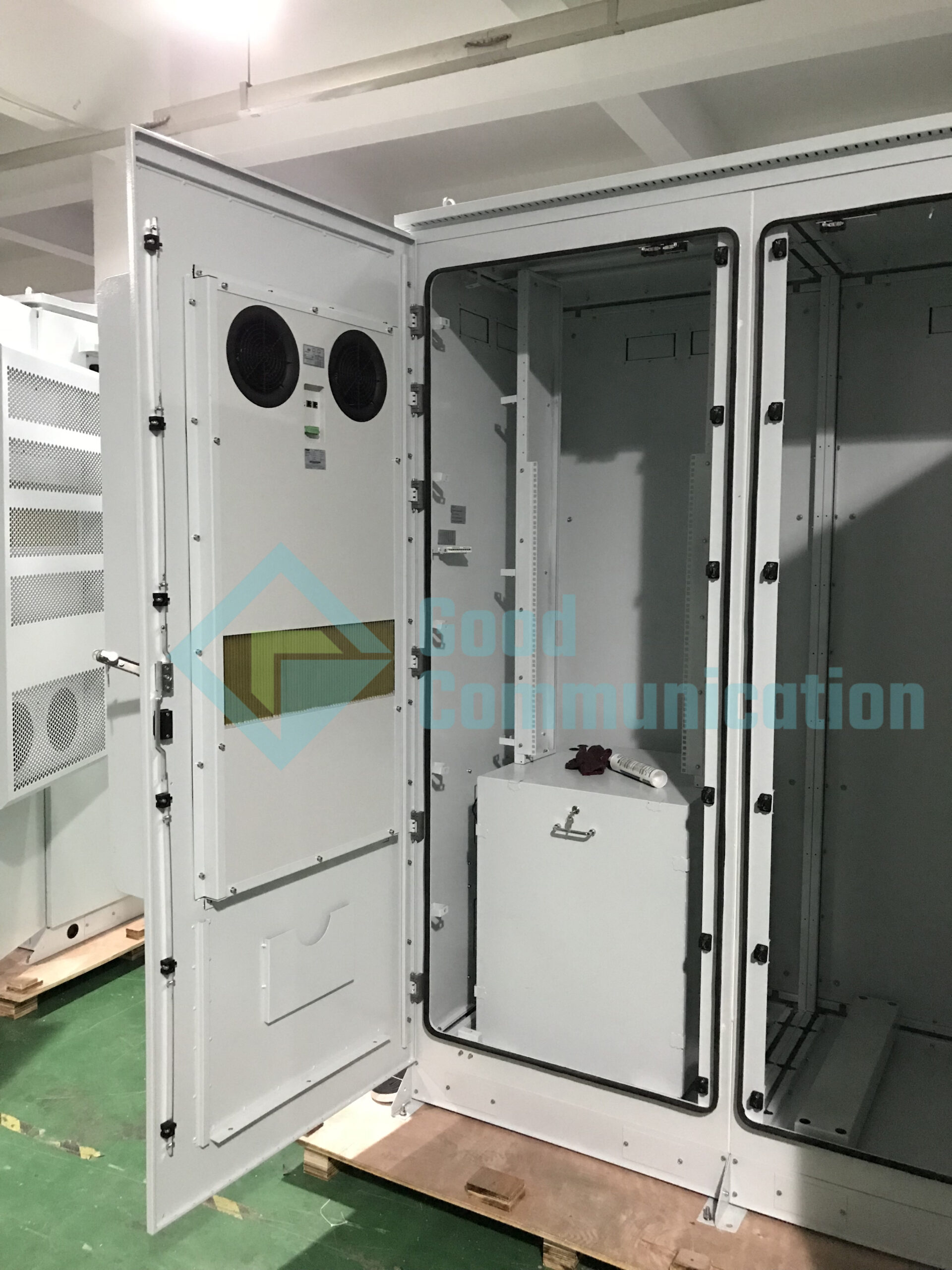

1.8M Dual Bay Outdoor Cabinet

Custom Weatherproof Double Bay Outdoor Electrical Box Stainless or Aluminum Enclosures

Model : GODD18H260HEX

IP55, NEMA 4 or NEMA 4X type double bay outdoor telecom enclosures are the ultimate choice for your outdoor racking requirements, which are well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package. The cabinet contains internal mounting rails, which allow installation of standard 19″ equipment.

IP55 rated
NEMA 4 or NEMA 4X type
Supplied fully assembled
Sandwich panel construction
Lockable front door with automatic seal-in-place ,with AC or DC Air conditioner mounted on the door
Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft
Welded, galvanized steel, powder-coated anti-corrosion surface
6point locking system with pad-lockable security
Limit switch, smoke sensor, door lighting equipped with smart control
Elevated plinth for floor mount or ground mount
Support custom-made.

Quote Now

Applications

IP55, NEMA 4 or NEMA 4X type double bay outdoor telecom enclosures are mainly used for wireless communication base station to house a variety of batteries and equipment, including the new generation of 5G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission.
