| Items | Description |
|---|---|
| Unit Dimensions (HxWxD) | 2000x 600x1155mm |
| Color | GREY RAL7035 |
| Material | Galvanized steel(Aluminum/stainless steel/Color coated steel optional) |
| Finish | Powder Coating finishes |
| IP (Ingress Protection) Rating | IP55,NEMA 4,NEMA 4X |
| Instalation | Floor mount |
| Interior Rack | 19″ Rack Mount |
| Integrated Cooling | Fans & Vents (Optional for other) |
| Locking Mechanism | 6 point Locking |
| Access | Front Door (Optional for others) |
**********Notes**********
-
Shipping Option: Assembly unit with carton or wood pallet
-
Waterproof outdoor server cabinet enclosuresIP Rating: IP55 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
-
Outdoor server rack enclosures Material Options: Cold metal Steel, galvanized steel, stainless steelor aluminum steel
-
Outdoor electrical cabinet Climate Controloptions: such as cooling fans, air conditioner , heat exchanger and Thermoelectric Cooler (TEC)

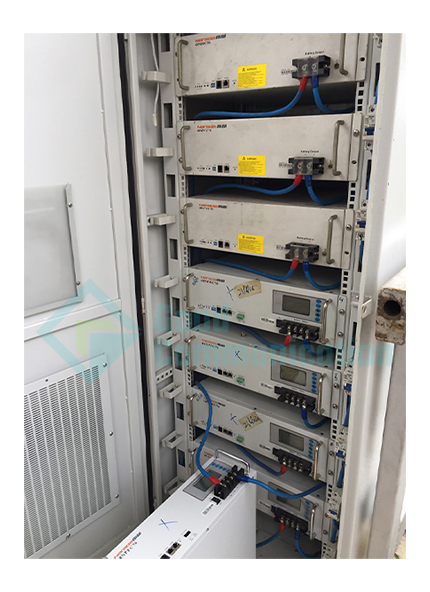

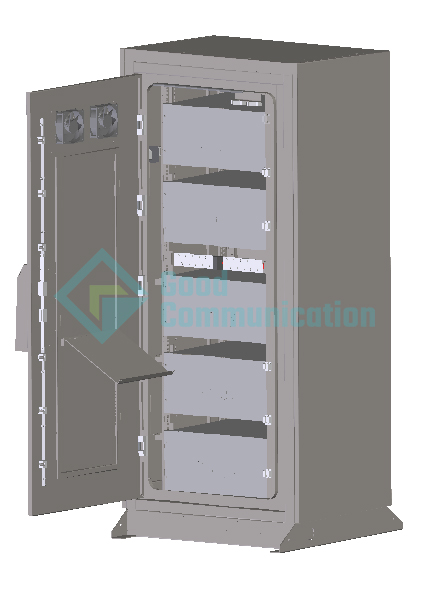

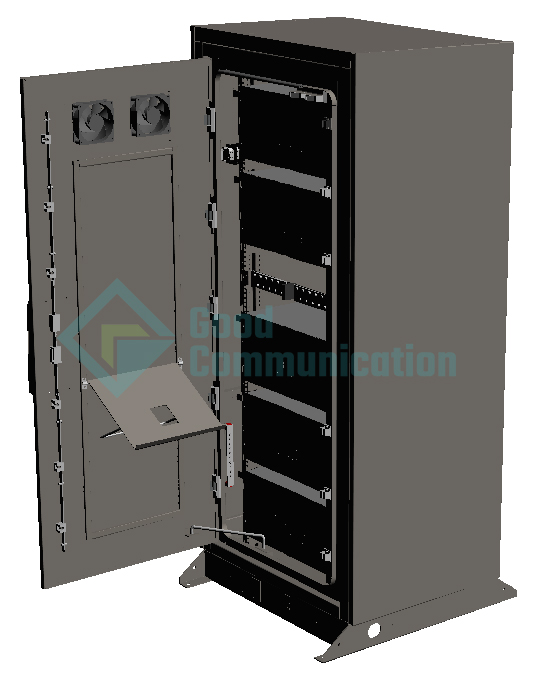

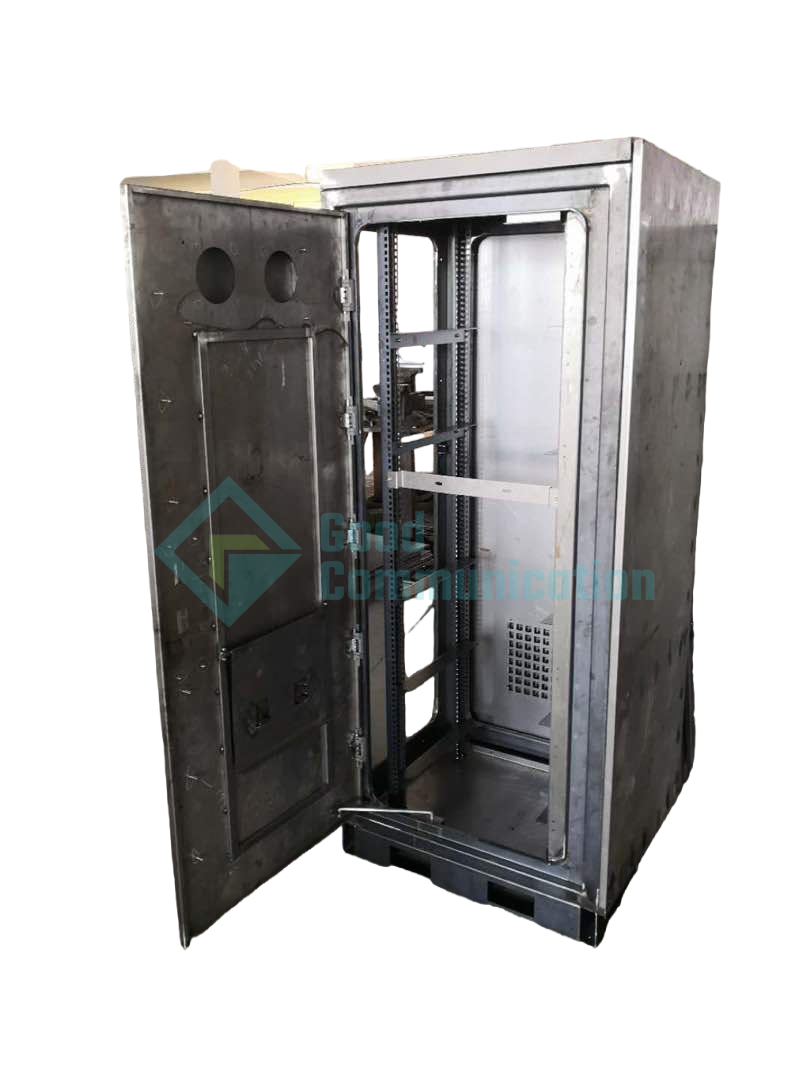

IP55 Custom Waterproof Dustproof Outdoor Battery Enclosures Cabinets with fans
Model : GODB378080DCFAN
Outdoor battery cabinet enclosure are designed to house a variety of batteries and ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water.
- Cooling: Fans & Vents ( or AC or DC powered Air Conditioner)
- IP55 rated
- Floor mount or ground mount
- Cusomized sizes available
- Fully welded design for strength and durability
- 19″ rack equipment mounting space
- IP55 ratedingress protection
- Welded, galvanized steel, powder-coated anti-corrosion surface
- 6point locking system with pad-lockable security
- Front access
- Limit switch, smoke sensor, door lighting equipped with smart control
- Elevated plinth for floor mount or ground mount
Applications
The outdoor battery cabinet enclosure is well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package.
- Telecommunications
- Wireless/Broadband
- Fiber Optics
- Back Haul
- Base Station
- Public Safety
- Utility
- Military
- Wi-Fi
- LTEE/4G/5G
