Metered  485PDU 1U MODBUS Power Distribution Unit
Model: GCT1U48513C13

As IT environments become increasingly complex, the demand for reliable rack-level power distribution has also grown. Eliminating power management issues is critical for IT equipment managers to maintain system availability in the face of rising high-density equipment deployments.

Metered PDUs locally display input voltage (V), current (A), power (kW), and energy consumption (kWh) via LCD/LED screens, while providing reliable power distribution. BM-PDUs deliver power utilization data, enabling data center administrators to safely install new equipment in cabinets and make informed decisions based on actual IT environment scale—reducing total cost of ownership.

Metered PDUs offer a wide range of power input and output options, from AC to DC, single-phase to three-phase, and 10A to 63A. All PDUs feature modular construction and customizable production to meet unique requirements. They support both horizontal and vertical mounting for flexible installation based on accessibility needs.

  • Real-Time Visibility – LCD/LED displays show voltage, current, and power metrics.

  • Proactive Alerts – Prevent failures with threshold-based notifications.

  • Scalability – Modular designs support everything from small racks to hyperscale data centers.

**********Features**********
  • Type: Metered rack-mounted PDU
    Voltage: 230V, single-phase.

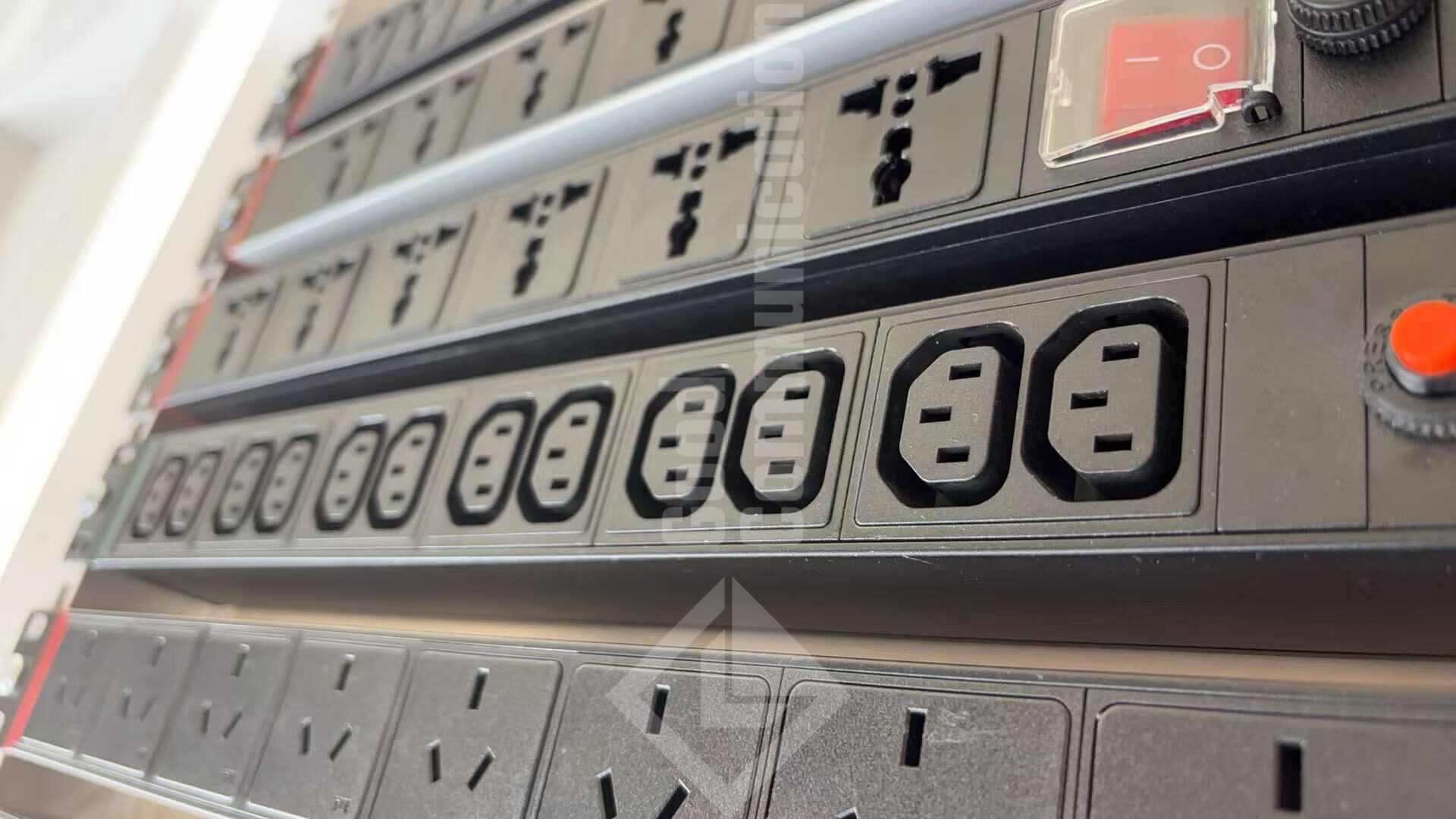

    Output: 13*C13 Outlets + 485 smart meter head
    Input: M20 waterproof connector, 16A C14 plug(Optional),
    3×2.5mm² cable of 2m (exposed 1.8m wire length).

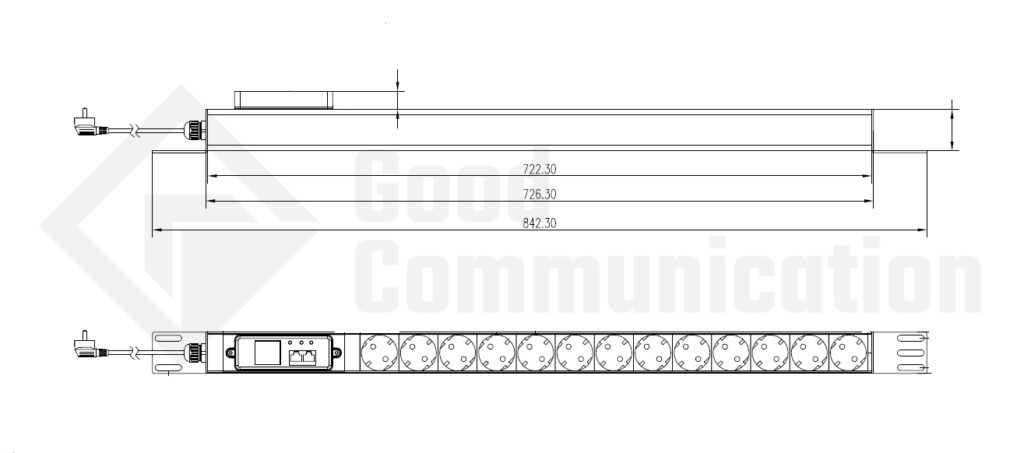

    PDU body: 1U, T15 aluminum alloy, environmental powder-coated
    black color.
  • Power Rating: Maximum load capacity 4000W, 16A 250V AC
Monitoring function Total load current
Total input voltage
Total electricity
Alarm limit setting function Over voltage, under voltage, over current alarm
Ways of alarm The status indicator on the system control panel will blink，The buzzer also responded.
Electric energy metering function Record the total amount of running electric energy
Access mode 485 access control
485 MODBUS support Support 485 MODBUS the second development interface
Measuring accuracy Electric current and voltage 1%
Display function Total electric current, total voltage, total power, total electric energy in the total input.
Alarm status display
Cascade connection One host can cascade 20 devices
It can be used for networking of monitoring protocol and dynamic loop monitoring system.

Application

Metered PDUs provide real-time power monitoring and reliable distribution for critical IT and industrial equipment.

1. Data Centers & Server Rooms

  • Capacity Planning – Monitor power usage (kW/kWh) to optimize rack density and prevent overloads.
  • Energy Efficiency – Track power consumption to identify underutilized servers and reduce costs.
  • Remote Monitoring – Alerts for voltage fluctuations or current spikes to prevent downtime.

2. Cloud & Colocation Facilities

  • Billing Accuracy – Measure exact power usage per customer for fair billing in shared environments.
  • Load Balancing – Distribute power evenly across racks to avoid circuit tripping.

3. Network Operations Centers (NOCs)

  • Critical Infrastructure Protection – Ensure routers, switches, and monitoring tools receive stable power.
  • Historical Data Logging – Analyze trends for future infrastructure upgrades.

4. Industrial Automation & IoT

  • Machine Monitoring – Track power draw of PLCs, sensors, and control systems in smart factories.
  • Predictive Maintenance – Detect abnormal power patterns (e.g., motor failures) before breakdowns occur.

5. Telecommunications (5G/Edge Computing)

  • Remote Site Management – Monitor distributed cabinets (e.g., cell towers) for power anomalies.
  • Battery Backup Integration – Coordinate with UPS systems to extend runtime during outages.
