Name Material Specification
1 Exterior Wall Q345 Main frame: 100*100 galvanized square tubes; Wall surface: welded galvanized corrugated sheets (zinc coating ~60μm), lifting points included
2 Interior Wall Rock Wool Composite Panel Constructed with rock wool composite panels; Aluminum sheet thickness: 0.6mm; Total thickness 100mm
3 Roof Corrugated Sheet Welded with 1.2mm galvanized corrugated sheets.
4 Door Standard security door
5 Insulation Panel a. Roof – Max. 95mm; b. Wall – Max. 95mm; c. Floor – Min. 82mm; Base angle: 40°

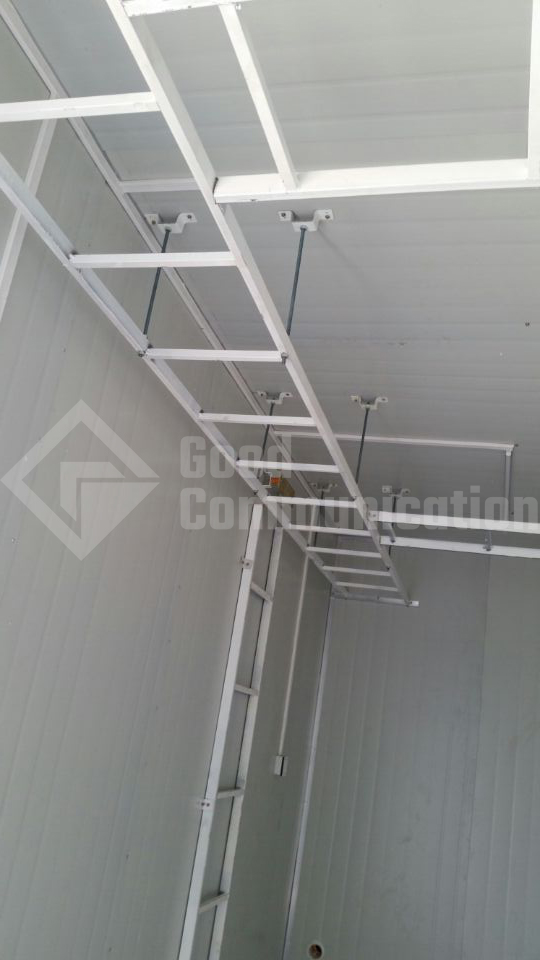

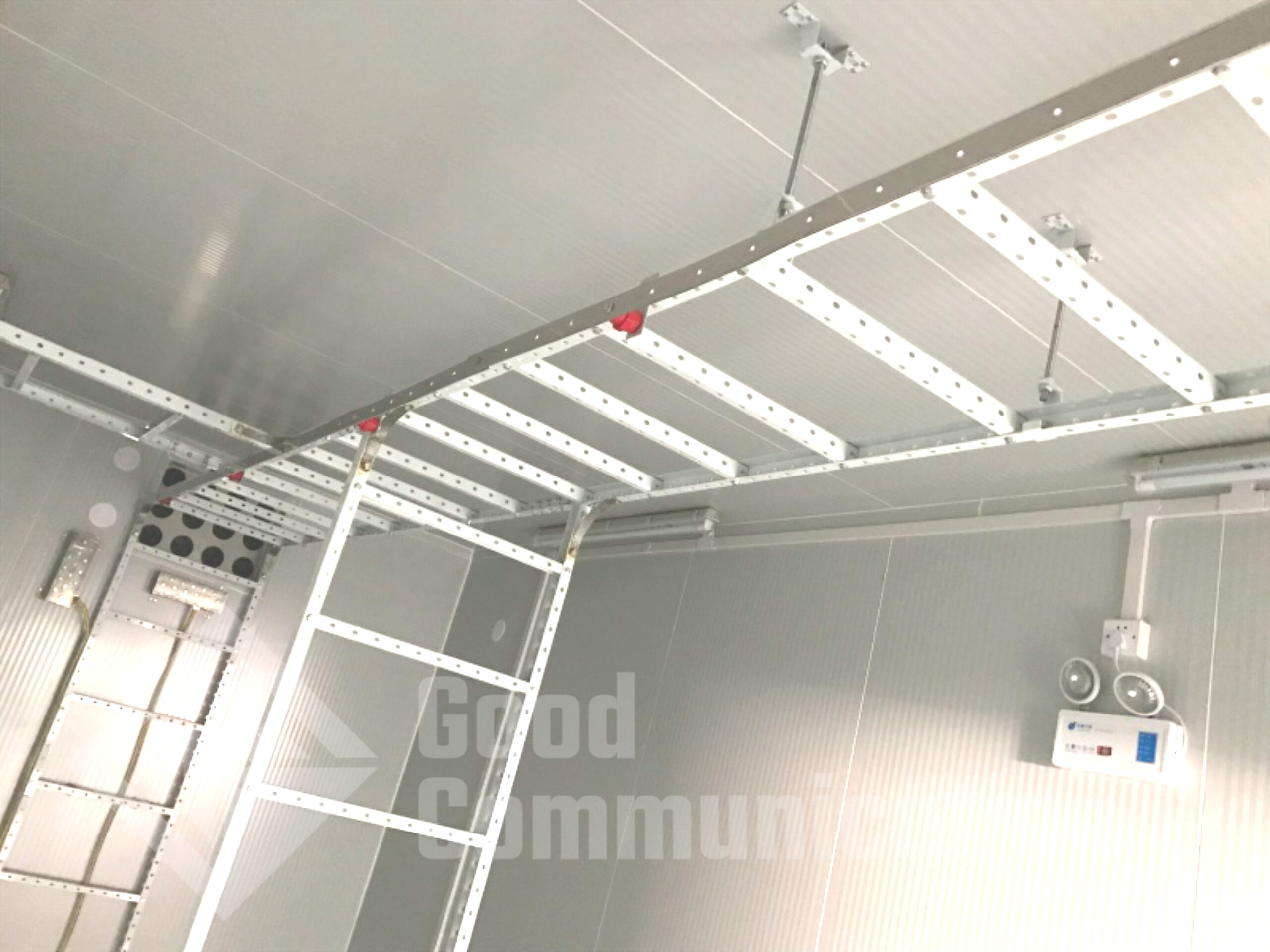

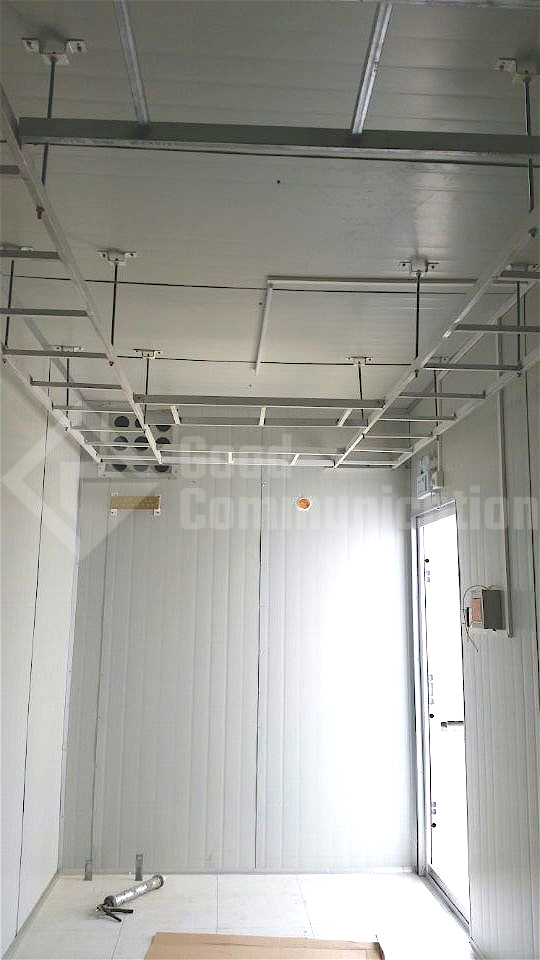

6 Cable Tray Q345 Customizable
7 Floor Tempered steel floor tiles, 400mmx400mm
8 Sockets & Switches
9 Lighting and others
**********Notes**********
  • Shipping Option: Assembly unit with protection and pallet base
  • Customizable cabinet size, flex for different applications

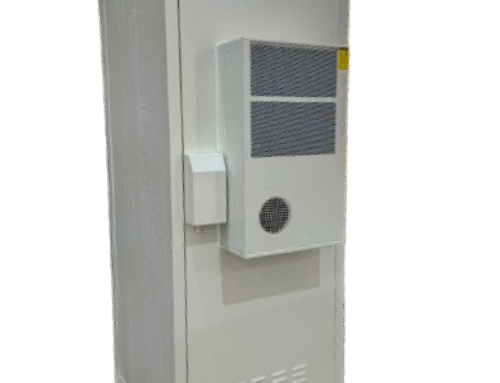

  • Outdoor electrical cabinet Climate Control options:  such as cooling fans, air conditioner , heat exchanger and Thermoelectric Cooler (TEC)

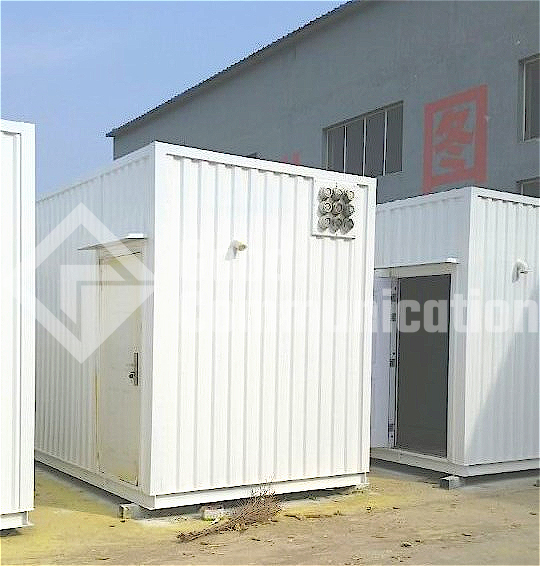

BTS Shelters/Communication Equipment Room/Telecom Shelters for BTS Stations

Model : GBTSCSHELTER

Communication Equipment Shelter/Telecom Room/Network Room is a critical infrastructure facility designed to centrally deploy and manage core telecommunication equipment, ensuring secure and stable operations for data transmission, switching, and storage.

  • Houses critical devices such as switches, routers, servers, and optical distribution frames (ODF).

  • Supports interconnection between wired and wireless communication networks.

  • Temperature & Humidity Control: Equipped with precision air conditioning (CRAC) to maintain optimal conditions (typically 22±2°C, 50±10% RH).

  • Dust & Static Protection: Features anti-static flooring, sealed cabinets, and air filtration systems.

  • Access control systems, CCTV surveillance, and fire suppression

  • Dual-grid power supply + UPS backup, with diesel generators for extended outages.

Application

  1. Telecom Operators

    • Central Office (CO): Handles backbone network traffic, connecting base stations and end-users.

    • Mobile Switching Center (MSC): Manages cellular network routing and call processing.

  2. Data Centers & ISPs

    • IDC (Internet Data Center) Rooms: Hosts cloud servers and network nodes for internet services.

    • POP (Point of Presence) Rooms: Local hubs for broadband and fiber-optic distribution.

  3. Enterprise & Industrial Use

    • Server Rooms: Stores IT infrastructure for corporate networks.

    • Industrial Control Rooms: Supports SCADA systems in smart factories/utilities.

  4. 5G & IoT Infrastructure

    • Edge Data Rooms: Low-latency hubs for 5G base stations and IoT gateways.
