Shelter Technical Specifications:

  1. Dimensions:

    • Outline: 4000mm (L) × 2000mm (W) × 2520mm (H)

    • Net Internal Size: 3800mm × 1800mm × 2300mm

    • Wall Thickness: 50mm PU (Polyurethane)

    • Roof Panel: 75mm PU

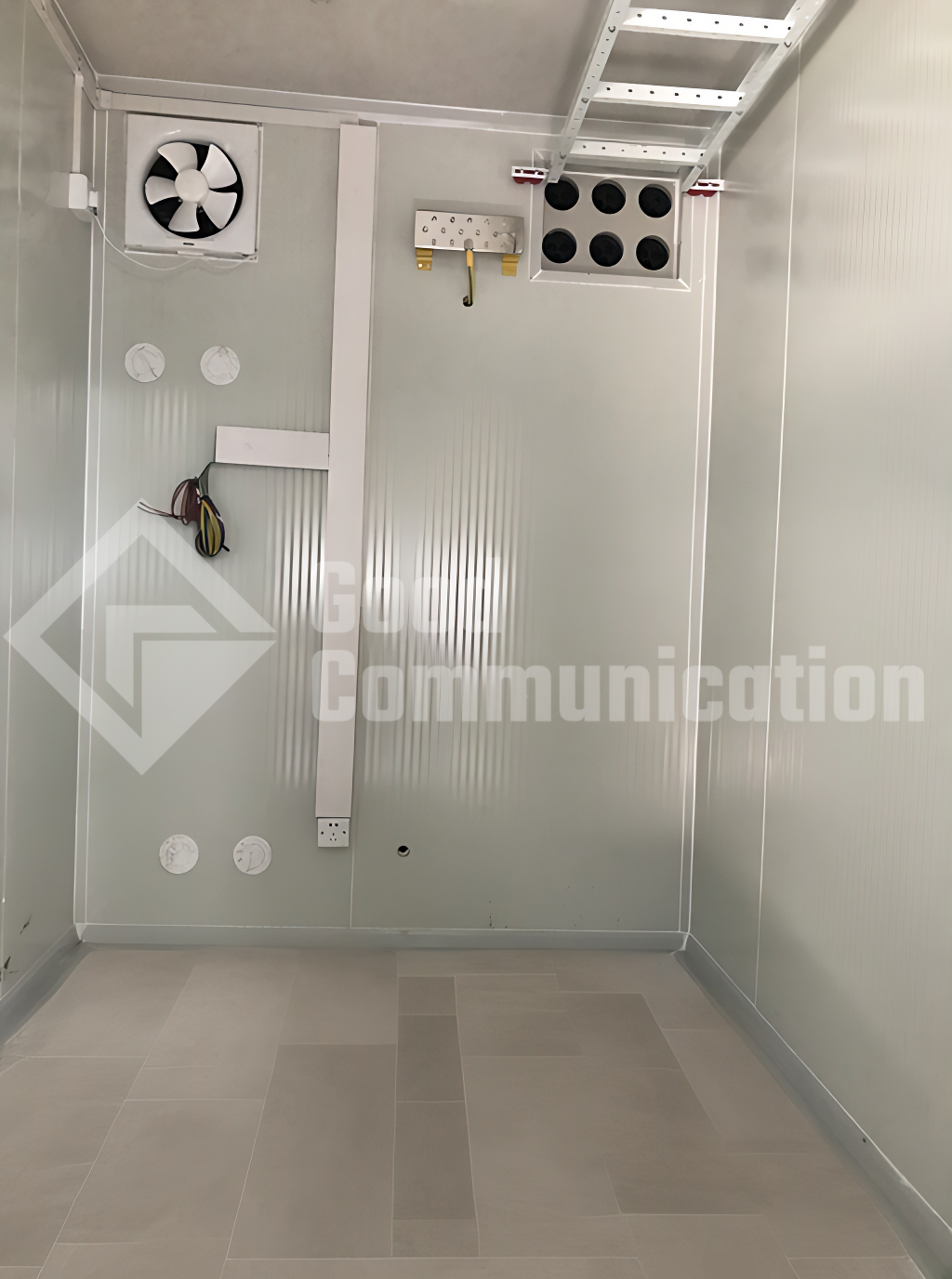

  2. Cable Inlet:

    • AGL (Above Ground Level): 1800mm

    • Size: 400mm × 300mm with 6 holes

  3. Earthing System:

    • 2 internal grounding points to meet equipment earthing requirements.

  4. Cable Management:

    • Cable ties connected via conductive straps; connection points polished and coated with Vaseline.

  5. Emergency Light:

    • 1 set installed 100mm below the cable tray.

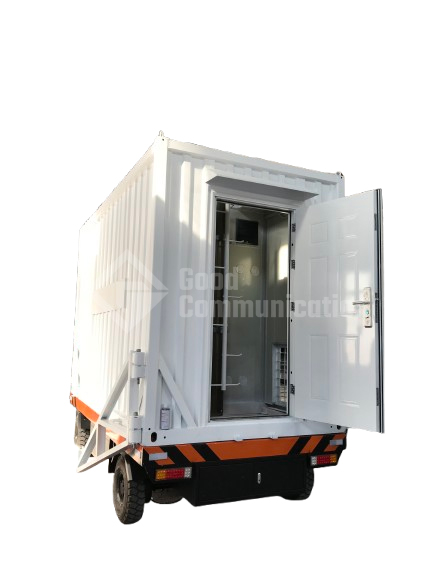

  6. Access Doors:

    • 2 doors with protective canopies.

  7. Electrical Wiring:

    • Lighting/Sockets: 2.5 mm² cable

    • Air Conditioning Dedicated Line: 4 mm² cable

  8. Fire Safety:

    • 1 × 2kg carbon dioxide (CO₂) fire extinguisher.

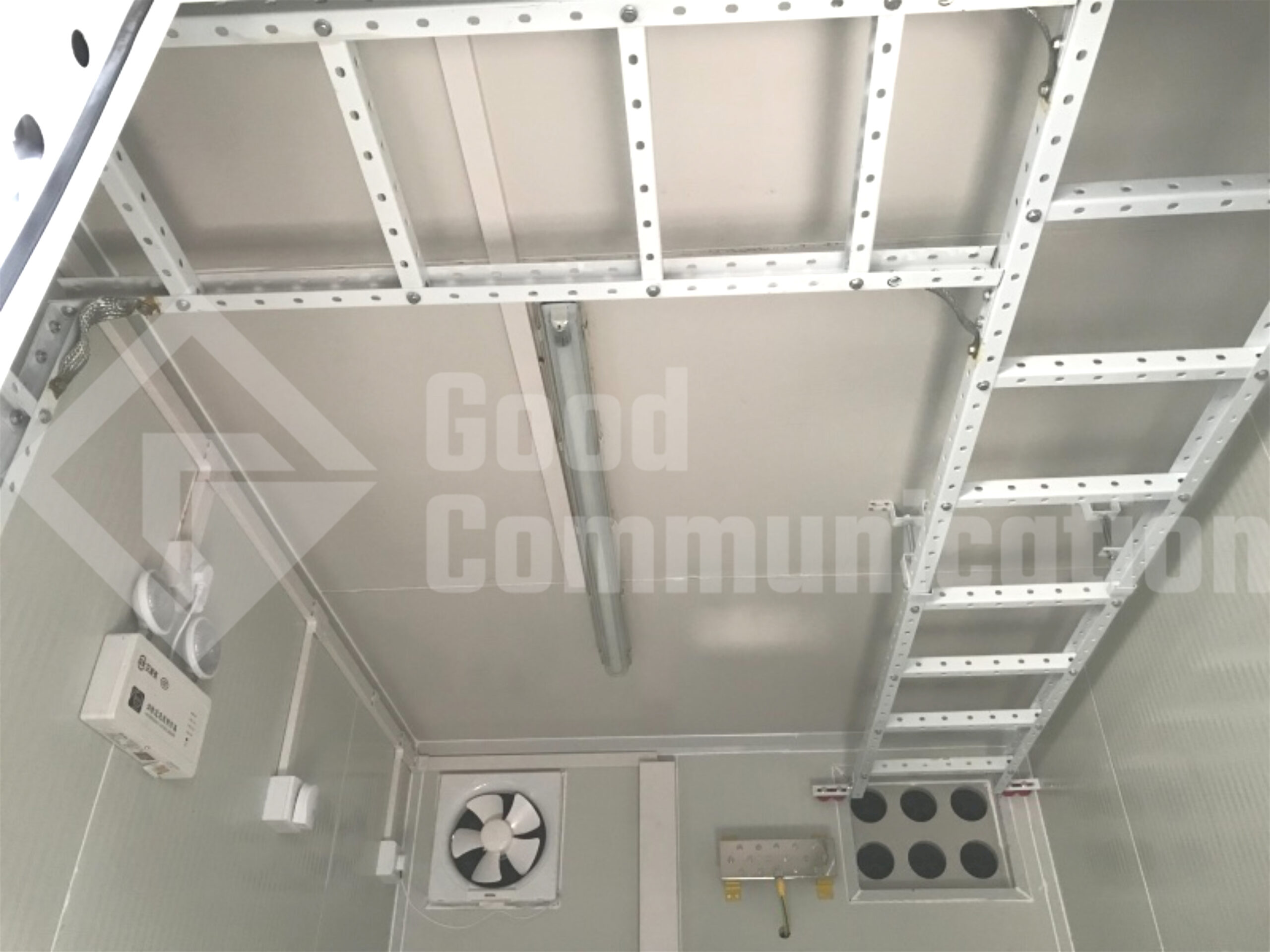

  9. Cable Tray Grounding:

    • All tray connections use jumper wires; copper bar grounded with 95 mm² copper cores.

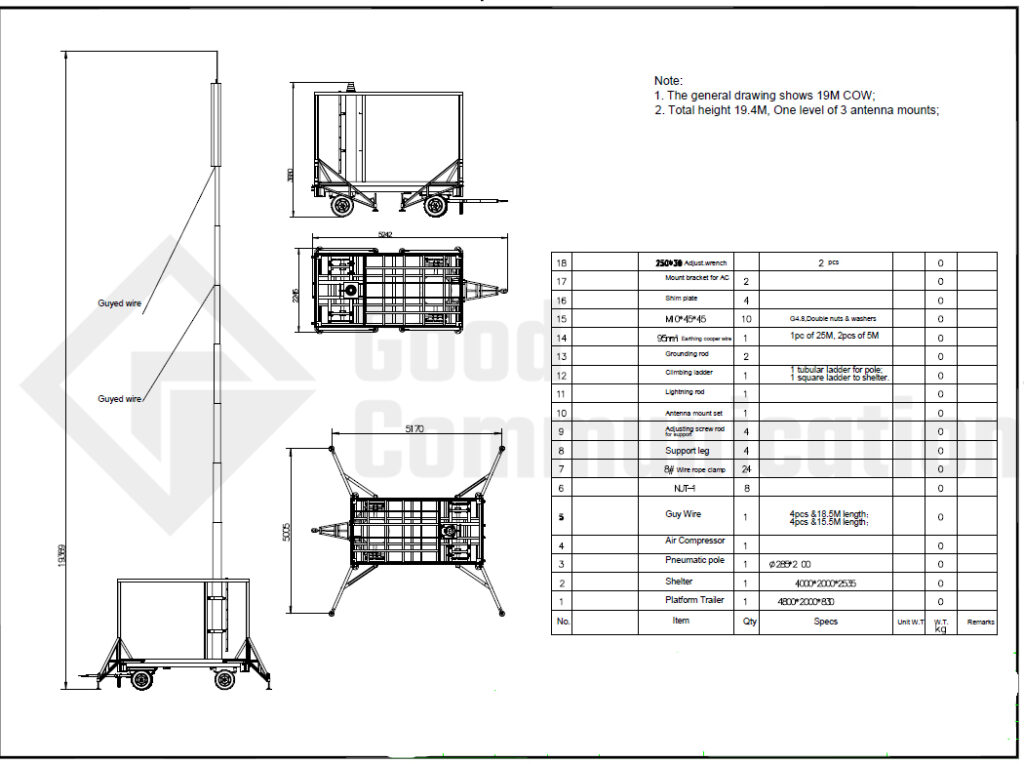

COW/Shelter Schematic Drawing

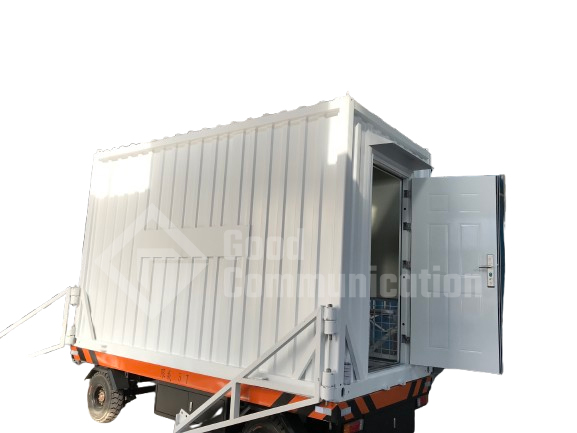

Shelters/COW/Mobile Communication Vehicle/Cell on Wheels

Model : GCOWPSTA19

Cell on Wheels BTS Station/Shelter is a portable, self-contained cellular base station mounted on a trailer or vehicle. It provides temporary wireless coverage and capacity enhancement for mobile networks, typically used in emergencies, events, or infrastructure gaps. COWs integrate antennas, radios, power systems (generator/battery), and backhaul (fiber/microwave) in a compact, rapidly deployable unit.

  • Features:

    • Rapid deployment (<2 hours)

    • Supports 4G/LTE, 5G, and IoT

    • Solar/hybrid power options for off-grid use

Application

  1. Emergency & Disaster Recovery

    • Restores cellular service during natural disasters (e.g., hurricanes, earthquakes) or network outages.

  2. Large-Scale Events

    • Boosts network capacity for concerts, sports events, or festivals to handle surge traffic.

  3. Construction Sites & Remote Areas

    • Provides temporary coverage for workers or rural regions lacking permanent infrastructure.

  4. Military & Defense

    • Deployable comms for field operations or tactical missions.

  5. Network Testing & 5G Trials

    • Supports R&D or temporary 5G/4G network demos.
