Outdoor Enclosure Single Bay with Heavy Duty Hex Model:GODT2400SBSHEX

Items	Description
Unit Dimensions (HxWxD)	2400x 900x900mm
Color	GREY RAL7035
Material	Galvanized steel(Aluminum/stainless steel/Color coated steel optional)
Finish	Powder Coating finishes
IP (Ingress Protection) Rating	IP55,NEMA 4,NEMA 4X
Instalation	Floor mount
Interior Rack	19″ Rack Mount
Integrated Cooling	Heavy Duty Hex 260W/K (Optional for other)
Locking Mechanism	6 point Locking
Access	Front Door (Optional for others)

Notes

Shipping Option: Assembly unit with carton or wood pallet
Waterproof outdoor server cabinet enclosuresIP Rating: IP55 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
Outdoor server rack enclosures Material Options: Cold metal Steel, galvanized steel, stainless steelor aluminum steel
Outdoor electrical cabinet Climate Controloptions: such as cooling fans, air conditioner , heat exchanger and Thermoelectric Cooler (TEC)

47U 900mm Wide x 900mm Deep IP55 Outdoor Cabinet Single Bay with Heavy Duty Hex

Model : GODT2400SBSHEX

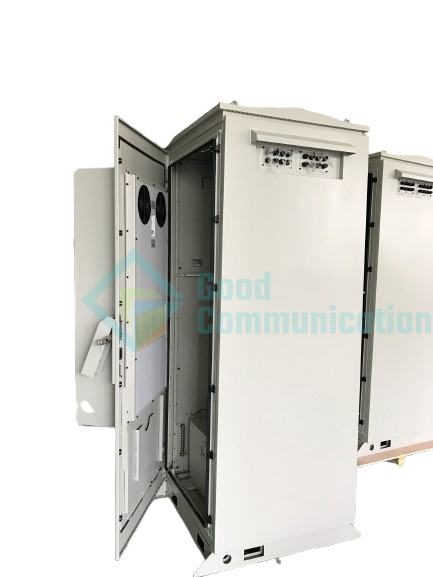

47U Heavy-duty outdoor enclosure with Heavy Duty Hex Cooling, designed to house a variety of telecommunication equipment with 19″ or 23″ rack rails, front door design make easy installation and maintenance, provide outstanding environment protection of your network equipment from vandalism, dust, rain, snow and dripping water

900mm Wide x 900mm Deep welded structure for strength and durability
47RU 19″ rack equipment mounting space
IP55 rated ingress protection
Temperature-controlled 260W/K Hex
Welded, galvanized steel, powder-coated anti-corrosion surface
6point locking system with pad-lockable security
Front door access for easy equipment access and mounting

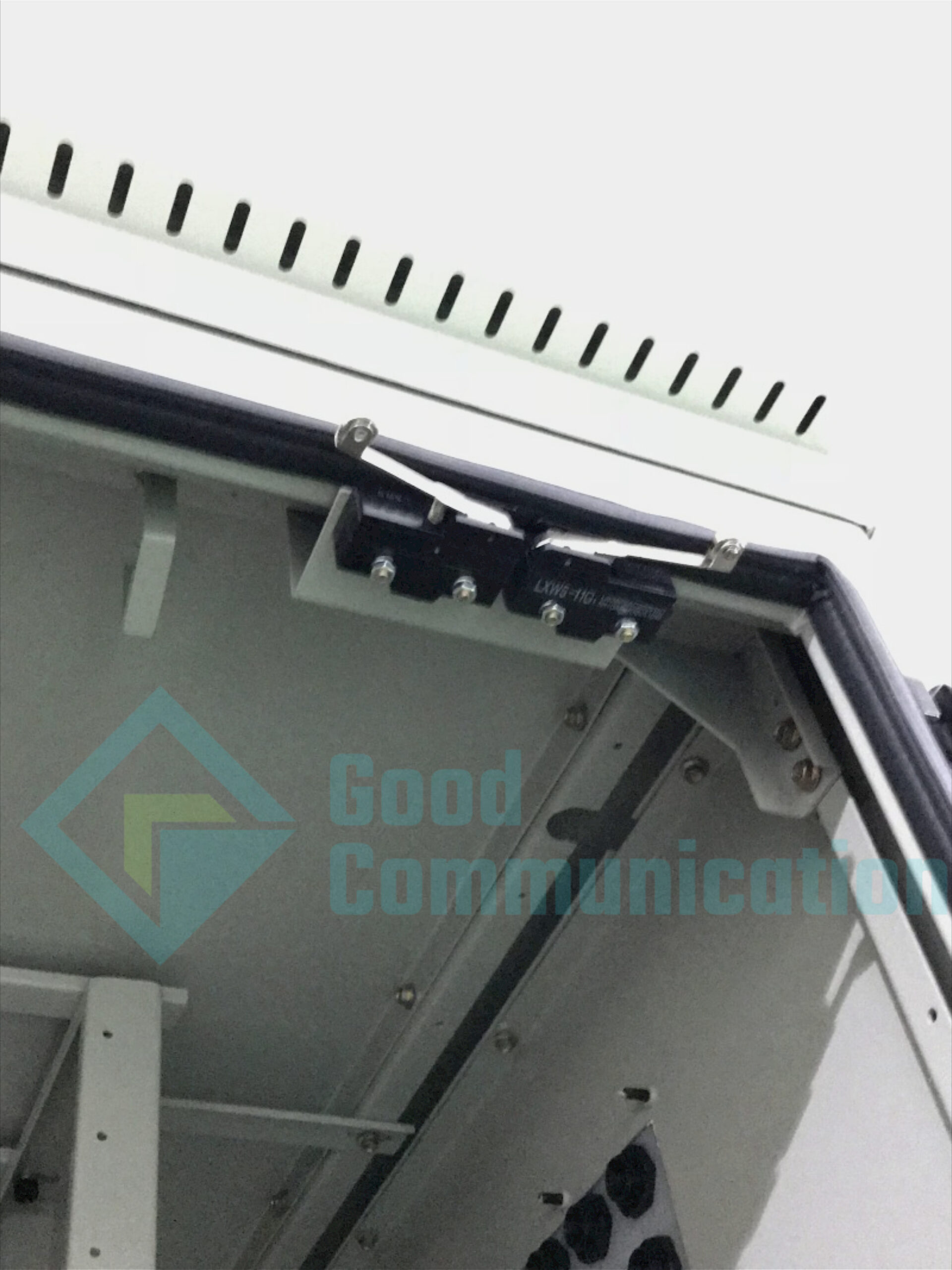

Limit switch, smoke sensor, door lighting equipped with smart control
Elevated plinth for floor mount or ground mount

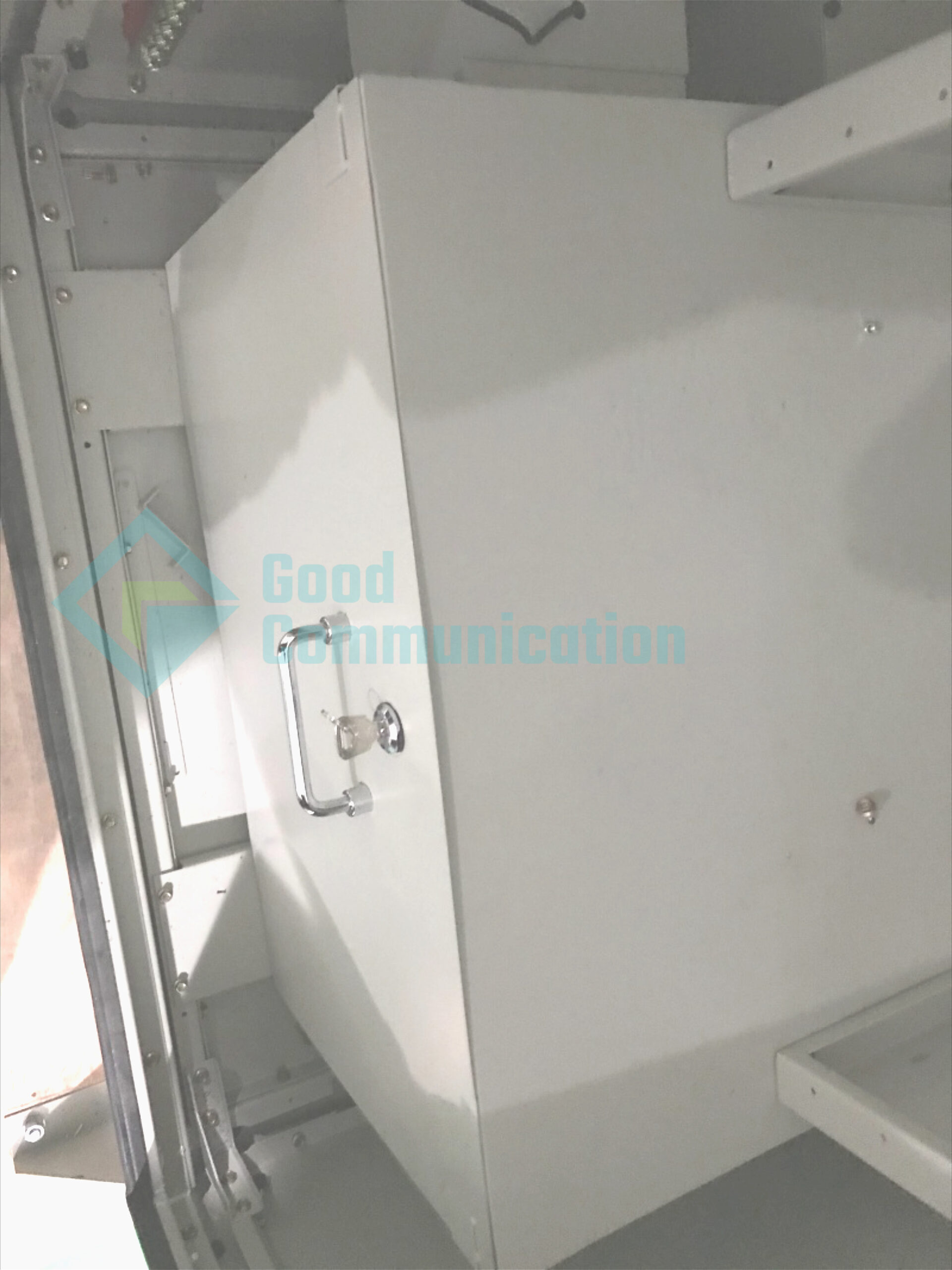

Available battery box ,electrical load panel and side spool cabinet options

Quote Now

Application

Designed for the telecommunication industry, these outdoor server rack enclosures can be deployed in harsh outdoor environments both rural or residential. Good Communication’s outdoor server enclosure is the ultimate choice for your outdoor racking requirements, they can provide a secure, climate controlled environment for any electronic equipment.
